High Temp Superalloys HOME >> High Temp Superalloys
PRODUCTS:Monel Alloy
GRADE:Monel Alloy 400、K-500
PRODUCTION STANDARD:ASTM ,SAE AMS
Views:1163
  • PRODUCTS DETAILS
  • SPECIFICATION

    Introduction:



    Monel is a group of nickel alloys, primarily composed of nickel (up to 67%) and copper, with small amounts of iron, manganese, carbon, and silicon. Stronger than pure nickel, Monel alloys are resistant to corrosion by many agents, including rapidly flowing seawater. They can be fabricated readily by hot- and cold-working, machining, and welding.

    Monel alloy 400 is a binary alloy of the same proportions of nickel and copper.It is a very expensive alloy, with cost ranging from 5 to 10 times the cost of copper and nickel, hence its use is limited to those applications where it cannot be replaced with cheaper alternatives. Compared to carbon steel, piping in monel is more than 3 times as expensive.


    Uses:

        - Aerospace applications

       -  Oil production and refining

       -  Marine applications

       -   Musical instruments

       -  Directional Drilling

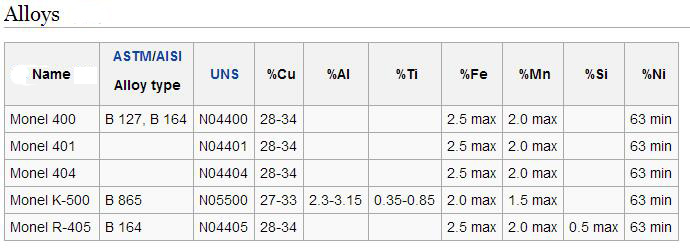

    Table 1 Chemical Composition


    Table 2 Standards

    TYPE

    UNS NO.

    BAR/WIRE

    SHEET/STRIP

    PLATE

    TUBE

    PIPE

    FORGINGS

    MONEL 400

    N04400

    AMS 4675
    4730
    4731
    ASTM-B-164
    MIL-N-894
    QQ-N-281

    AMS 4544
    ASTM-B-127
    QQ-N-281

    AMS 4544
    ASTM-B-127

    AMS 4574
    ASTM-B-163

    ASTM-B-165
    QQ-N-281

    AMS 4675
    QQ-N-281

    MONEL R 405

    N04405

    AMS 4674
    ASTM-B-164
    QQ-N-281

    AMS 4674
    QQ-N-281

    MONEL K 500

    N05500

    AMS 4676
    MIL-N-7506
    QQ-N-286

    COMMERCIAL

    COMMERCIAL

    AMS 4676
    QQ-N-286
